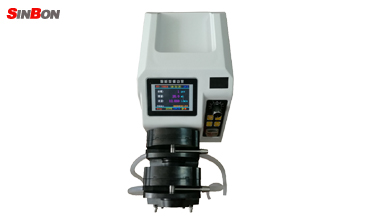

Peristaltic Pump Filler

FEATURES

Large LCD display, to display with flow rate, timing and filling function.

With full-speed emptying, suck-back angle settings, flow correction, time setting, ambient temperature detection function.

Brushless DC motor drive, large torque, adapt 353Y-PPS pump head.

Menu: the flow run(on-screen display speed),timed run (appointment to run),filling run (accept infrared sensing)

Operation command: panel operation, foot switch (automatic indentification) ,external control ( analog signal and communication protocols) running

Basic operation of the rotary encoder switch, convenient and practical, with voice and text prompts, no need special training.

Adapt 153Yx/253Yx/DG several pump heads(Two pump heads can be connected in series to form two flow channel)

Supply black PPS material pump head with strong corrosion resistant, light-colored PSU material pump head with good appearance and chemical properties in optional.

Standard: LCD drive, pump head, hose (Two meters in optional).

Optional: foot swith, spare hose, filling needles, hose adapter, anti floating countersunk head.

Note: Footswitch to control start and stop, crawl or sustained in optional. Automatically identify external footswitch.



SPECIFICATION

Model No.: WT-600CA

Display: LCD

Speed: 30~600.0rpm,in reversible

Mode: Rotary encoder switch

Operation: Flow rate,timing,filling

Function: Full speed emptying, suck-back angle settings, flow rate correction, time adjustment, ambient temperature detection.

Suck-back angle: 0~360° Arbitrarily set

Foodswitch: Automatic identification ( can be set to run crawl or run continuously )

Filling running: Can be set to run automatic program run or infrared sensing(Missing bottles only irrigation)

Dimension: Length304×Width166×High 178(mm),weight:4.1-5.1Kg

Working condition:  -20-60℃,the relative humidity is less than 85%

Power:  Ac220V50/60Hz(Ac110V50/60Hz in optional),consumption power 120W

Max pressure: ≤0.17MP,max up to 0.27MP(Hose outlet pressure)

External control: Start and stop,direction,and speed control:0.5-5V/10V,4-20mA,0-10KHxz

Protection class: IP31


Flow Rate(ml/min,Medium:water,Speed 30-600rpm)

Pump head

153Yx253Yx
Tube14#16#25#17#18#15#24# 35#

36#

ID x wall(mm)

1.6×1.6

3.2×1.64.8×1.6

6.4×1.6

7.9×1.6

4.8×2.4

6.4×2.4

7.9×2.4

9.7×2.4

Flow rate

6.3~126

23~460

50~1000

84~1700

114~2280

45~900

84~1680

117~2340

150~3000
