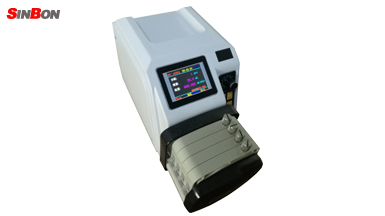

High Accuracy Peristaltic Pump filling Machine

Used for filling 1ml-50ml/bottle

FEATURES

Using true color LCD screen display, it has flow/speed, timing and filling mode, based on different application to choose different mode

It has basic functions such as full speed empty liquid, suck back angle setting, flow volume calibration, time and environment temperature display

Menu: flow operation (display flow speed), timed run (run appointment), filling operation (that accept infrared sensing)

Operation command: touch panel operation, foot switch (automatic identification), external control (analog signals and communication protocols)

Rotary switch basic operation, convenient and practical, with voice and text prompts, no special training

Standard configuration: Main machine, pump head, soft tube (2m length)

Optional configuration: foot pedal, spare tube, nozzle, anti-float sink top

SPECIFICATION

Model No.:	BT-600CA-DGx1(8)	BT-600CA-DGx2(8)	BT-600CA-DGx3(8)	BT-600CA-DGx4(8)
Pump Model:	Peristaltic Pump: DGx
Pump Material	POM+PPS
Roller Material	SUS304
Sucking Height	Max. 4m
Tube/hose No.:	14#/16#/25#
Pump/Nozzle QTY:	01	02	03	04
Display:	LCD
Speed:	0～600.0 rpm (in reversible)
Operation Mode:	Rotary encoder switch
Working Mode:	Flow/Timing/Filling
Basic Functions:	Full speed empty liquid, suck back angle setting, flow volume calibration, time and environment temperature display
Suck-back Angle:	0～360° (adjustbale)
Filling Mode:	Automatic/Manual
Max. Pressure:	≤0.17MP,max up to 0.27MP(Hose outlet pressure)
External control:	Foot pedal; 0.5-5V/10V;4-20mA; RS485
Working condition:	0-60℃,the relative humidity is less than 85%
Power source:	AC220V;60HZ;1P; 36W (AC110V;60HZ;1P for option)
Dimension:	304x166x178mm
Net Weight:	4.1-5.1kg
IP Class:	IP31

Flow rates based on lab test for reference only

BT-600CA	DGx pump, speed 0-600rpm; test water in the lab
Hose/tube No.:	14#	16#	25#
ID x wall thickness	Φ1.6×1.6mm	Φ3.1×1.6mm	Φ4.8×1.6mm
Flow rate:	0-150ml/min.	0-450ml/min.	0-593ml/min.
Remark:	Flow rate is affected by multiple factors, above lab test results are only for reference
