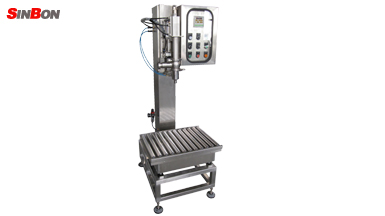

Barrel Filling Machine

FEATURES

Use weighing controller and FATEK PLC control, easy to operate and working reliable

All the parameters can be setting on weighing controller

It has automatic filling and manual filling mode for choice

Two stages filling speed (fast/slow) can ensure good filling accuracy

Automatic freefall weight compensation function improve filling accuracy

Use penumatic filling nozzle with an drip cup to avoid liquid leakage

Use flange or NPT connect ion, fast and easy to connect with user's infeed pipe

Bump protection function to avoid nozzle broken when nozzle did not align with drum hole

All the liquid contact parts are stainless steel 304 (SS316 material for option), non-contact parts are painted steel or aluminium alloy structure

Interlock safety protection function

Anti-explosive Level: ExdIIBT4, suitable for working in Class 1,Division 2, anti-explosive zones A,B,C,D

APPLICATION

Drum Filling Machine is based on weighing scale to measure liquid weight filled into all kinds of containers, such as drum, IBC etc.

Widely used in chemical, food, pesticide industries etc.

Suitable for filling Coating, paint, printing ink, adhesive, curing agent, resin, dye, detergent, oil, glycerin, lubricating oil, edible oil, essence, solvents, additives, food additives, pesticides and other hazardous chemical products etc.

SPECIFICATION

Model No.: BDF-30H1

Filling Range: 1-30kg

Filling Mode: Filling at above liquid surface

Connection Mode: DN50 Flange or NPT (Liquid infeed pressure ＜6Mpa)

Filling Accuracy: ±0.2% F.S. (Depends on slow feeding settting and liquid infeed status)

Production Capacity: 25L drum, 180-300 drums/hour (Liquid infeed speed must be 10 cubic meter per hour at least)

Penumatic Nozzle: Stainless steel 304 nozzle with Teflon sealing material

Weighing Platform Size: 500(L)x400(W)mm

Roller Conveyor 500(L)x400(W)mm for storing finished drums

Power Source: AC220V;50Hz;1P;20A

Air Source: 4-6kg/m2

Dimension: 1005(L)x923(W)x1546(H)mm

Packing Size: 1350(L)x1000(W)x1830(H)mm

Weight: N.W.:210kg; G.W.: 320kg
