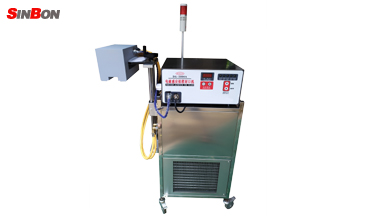

Continuous Aluminum Foil Induction Sealing Machine for bottle

BRIEF INTRODUCTION

Induction sealers seal an aluminum laminated liner to the top (bunghole) of plastic containers and/or glass containers with flat threaded caps. This lining consists of several layers of materials typically one metallic layer over a thermoplastic layer. When the container is positioned next to an active induction head, one or more induction coils excite the metallic molecules of the metallic layer. This ultrahigh frequency vibration causes the metal layer to heat up, which in turn melts the thermoplastic layer of the lining causing it to fuse to the top of the container. This seal is hermetic and impermeable to gases. In effect the lining becomes part of the container. From this point on nothing enters or exits the container until the lining is punctured. For this reason induction sealers are used widely thought many industries. The process is extremely simple, and can be accurately repeated time after time.

FEATURES

Rotating Heating Head installation can be suitable for all kinds of bottles; No limit on cap size, bottle size, cap and bottle shape etc. Only one machine can seal all your botttles, save machine purchase costs.

The same model sealing heads, water tank and host can be replaced by each other; Save maintenance costs in near future

It is suitable for all shape of bottles and caps, especially for complicated-shape caps

Latest designed modular technology which ensure machine has good performance on anti-corrosion, moisture-proof, dustproof and anti-EMI and has longer working life

High Speed Circulating water cooling system ensure machine has stronger power and high working efficiency

Smart Heating Head with smaller size and working with minimum conveyor length 1000mm

Built-in power supply stabilizer ensure constant output power, power grid volatility can work normally

It has self-protection functions when over heat, over load, water shortage occur and self diagnosis function

Cooling system adopts the mute design and effectively reduce the noise in working environment

Power is adjustable based on special power supply unit, don’t need preheat the machine when power on, easy to operate

The structures of machine used stainless steel 304, easy clean and beauty, in accord with GMP requirements

SPECIFICATION

Model No.: DG-5000A

Cooling Type: High speed water cooling

Power Supply: AC220V+/-10%; 50/60Hz; 1P

Output Power: Max. 5000W (Adjustable)

Sealing/ Cap Diameter: Φ10mm～Φ140mm; withinΦ 300mm custom made

Sealing Speed: 50-600bottles/min.

Height of Heating Head to floor: 760mm-1180mm

Dimension: 1) Host: 460x410x230mm;

                    2) Water Tank: 520x450x980mm;

                    3) Heating Head: 310x130x190mm

Net Weight: 72kg; G.W.: 98KG

PACKING LIST

One set of Host

One piece of Heating Head

One set of Movable Water Tank

One pieces of Lead Screw

One set of tools

Manuals

OPTIONAL PARTS
