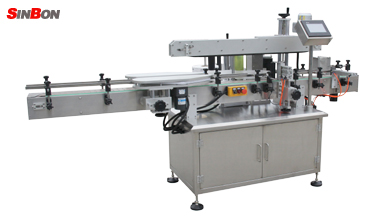

Double Side Labeling Machine

FEATURES

It is suitable for pharmaceutical, food, cosmetic and other light industrial products such as oval, square, flat bottles on the single and double sides labeling.

The main interface system is advanced and compatible, easy operation, complete functions, has a wealth of online help function

The bottle dividing device shaped general, any diameter of the bottle without replacement parts, rapid positioning adjustment; bilateral chain correction device ensure the material on the neutral

Special elastic pressing equipment ensure seeding materials stability

Automatic optical inspection, have nothing items come without labeling, and without label automatic correction or alarm and automatic detection function, to prevent leakage and waste

Labeling speed, conveyor speed, sub-bottle speed stepless speed, adjust as needed

It has the advantages of simple structure, compact structure, convenient operation and maintenance

SPECIFICATION

Model No.: SBXT-3510

Labeling Heads QTY: 02pcs of side labeling heads

Labeling capacity: 40-200pcs/min. (Related to bottle and label size)

Labeling accuracy: ±1.0mm

Label size: Length 20-300mm; Width 10-180mm

Bottle size: Width 20-200mm; Height 40-300mm

Roll inner Diameter: Φ76mm

Roll outside diameter: Max. Φ350mm

Dimension (LxWxH): 2400x1000x1700mm

Power Source: AC220V; 50Hz/60Hz;1Pp; 2000W
