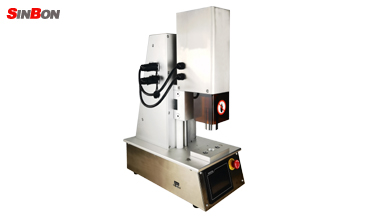

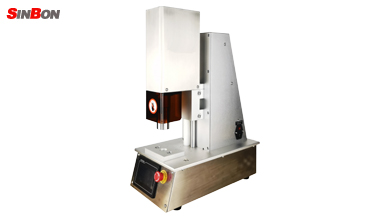

Electric Vial Cap Crimper

Full electric vial cap crimper

FEATURES

Quality and applicability: The capping quality is stable, and the capping heads of different sizes can be replaced, which is suitable for small batch production of multiple varieties.

Convenient operation: The touch screen is simple to operate, and the capping force and speed can be flexibly set.

Control accuracy: The servo motor controls the capping force to ensure accuracy and stability.

Parameter adjustability: The capping force range is adjustable to meet diverse needs.

Bottle cap compatibility: Suitable for various specifications of bottle caps such as aluminum-plastic caps, all-aluminum caps, perfume vial spraycaps, etc.

Mold diversity: Equipped with a variety of capping molds, suitable for capping of different specifications of bottle caps.

Advantages: comparing with pneumatic cap crimper, full electric cap cimper has no effect by unstable air supply

Crimper Head

Cap Size: Diameter 13mm

Cap Size: Diameter 20mm

Cap Size: Diameter 8mm (Custom made)

Cap Size: Diameter 32mm (Custom made)

SPECIFICATION

Model No.: SCM-200E

Max. Bottle Size: Height 200mm

Max. Cap Size: Diameter 13mm/20mm/8mm/32mm (Choose one size)

Power Source: AC220V;50Hz;1P;0.75kw

Dimension: 380x170x440mm

Net/Gross Weight: 25kg/35kg

Packing Size: 560x440x280mm
